Flash Memory " Database "
Clients/Comrades ,
Please Find Below Some Of The Devices In Monolith Type We Have Worked With , We Also Do Pinout Research And Sell Pinouts To Data Recovery Professionals
1 : Pen Drives
2 : Micro SD Cards
3 : Secure Digital Cards
4 : Other Flash Devices
Pen Drives :
SD Cards :
| 001 |  |
NAND Manufacturer : N/a NAND ID : N/a NAND Details : Real : Page Size Na , Block Na , Plane : Na Nominal : Page Size N/a , Block N/a , Plane : N/a Protocol : N/a Power VCC : Real N/a Volts I Could Work Upto N/a Volts In VNR Ver N/a Pinout : Yes Available " Contact Us If You Wanna Buy This Pinout " ECC : N/a.bch XOR : N/a Controller : N/a Page Structure : N/a Status : N/a |
|
|
Micro SD Cards :
| 001 |  |
NAND Manufacturer : Samsung NAND ID : ECD598CE74 NAND Details : Real : Page Size 9216 , Block 1769472 , Plane : 2466643968 Nominal : Page Size 9216 , Block 2359296 , Plane : 4831838208 Protocol : Async DDR Power VCC : Real 3.3 Volts I Could Work Upto 1.6 Volts In VNR Ver 6.1 Pinout : Yes Available " Contact Us If You Wanna Buy This Pinout " ECC : PS_MicroSD_9216(ecc106b)_8.bch " After XOR " XOR : PS_MicroSD(9216b_64p_1134_xoredSA_ECC)_5061FD.xor " Before ECC " Controller : Phison Page Structure : Data Area X 2 " 1024 " + 4 SA + 106 ECC x 8 Times + 144 End
Status : SLC Block Were There So SLC Plus MLC/TLC Were Seperately Solved And Joined ,FS We Got Partially FS But Wave Files of Sound Recording We Nailed |

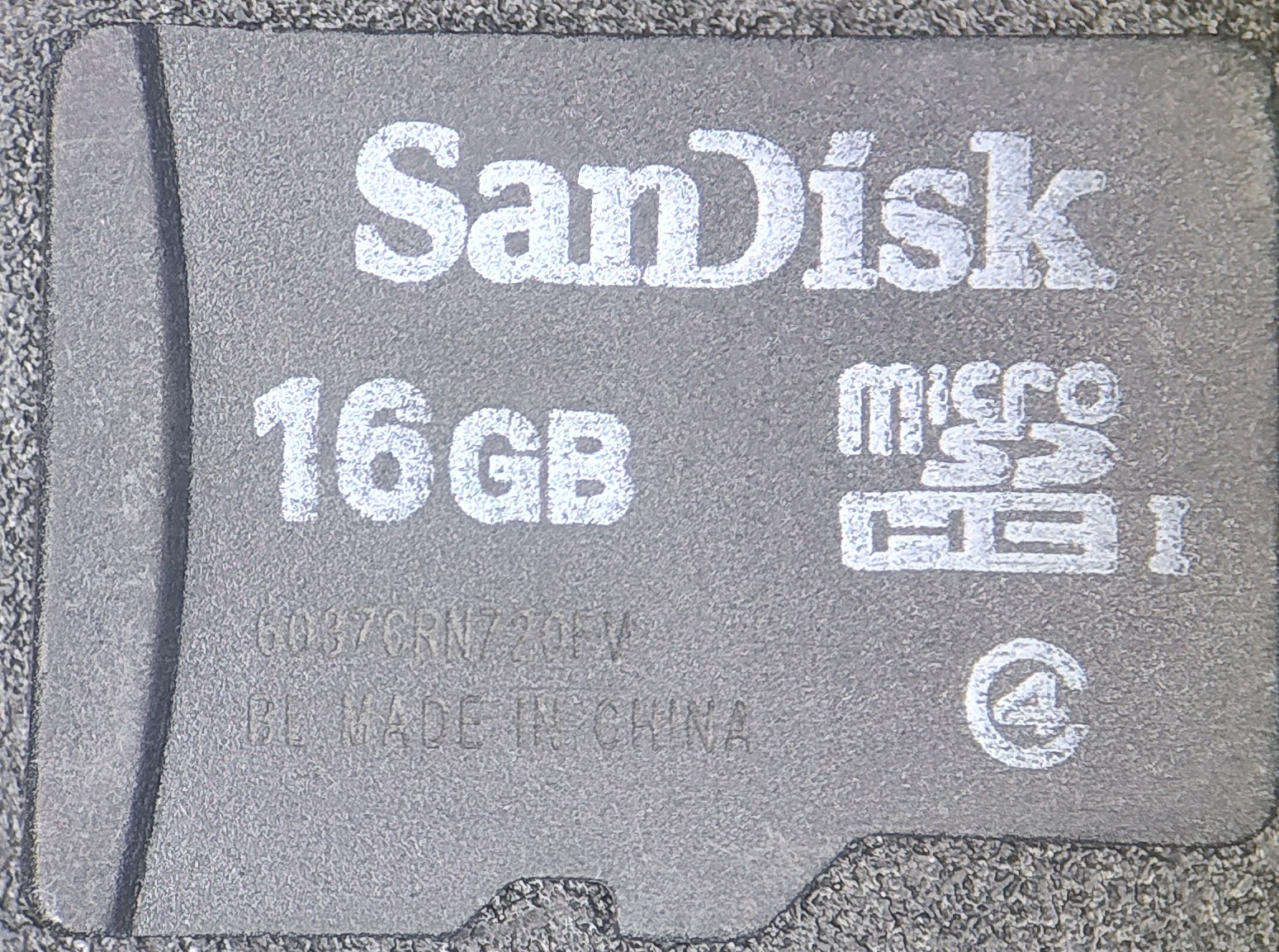

| 002 |
|
NAND Manufacturer : N/a NAND ID : N/a NAND Details : Real : Page Size Na , Block Na , Plane : Na Nominal : Page Size N/a , Block N/a , Plane : N/a Protocol : N/a Power VCC : Real N/a Volts I Could Work Upto N/a Volts In VNR Ver N/a Pinout : Yes Available " Contact Us If You Wanna Buy This Pinout " ECC : N/a.bch XOR : N/a Controller : N/a Page Structure : N/a
Status : We Could Recover This Micro-SD Without Chipoff |

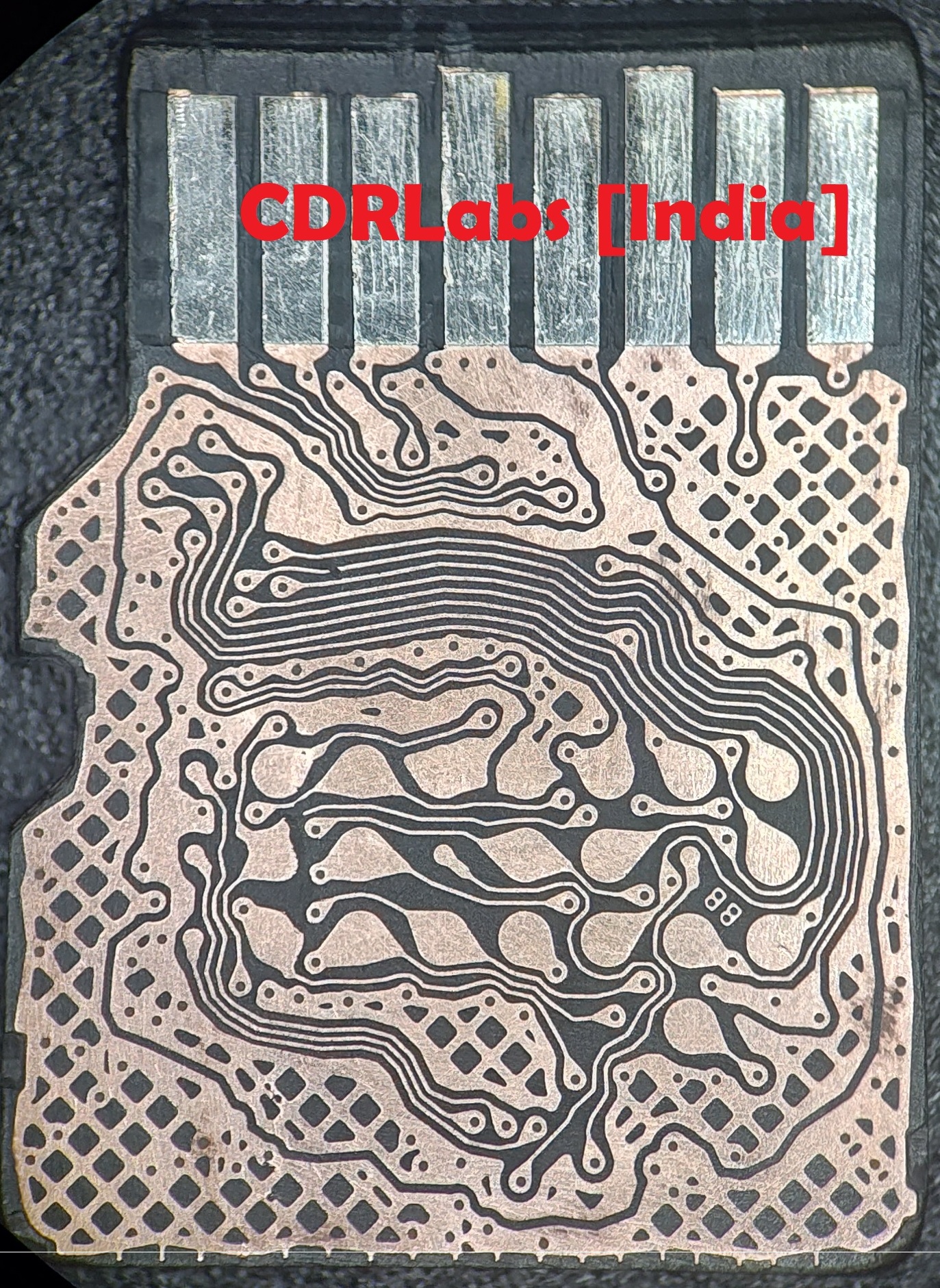

![002 - CDRLabs - Case No 05085 [Magendram]](/files/image/Monolith%20Database%20-%20Micro%20SD/002%20-%20CDRLabs%20-%20Case%20No%2005085%20%5BMagendram%5D%20-%20II.jpg)
